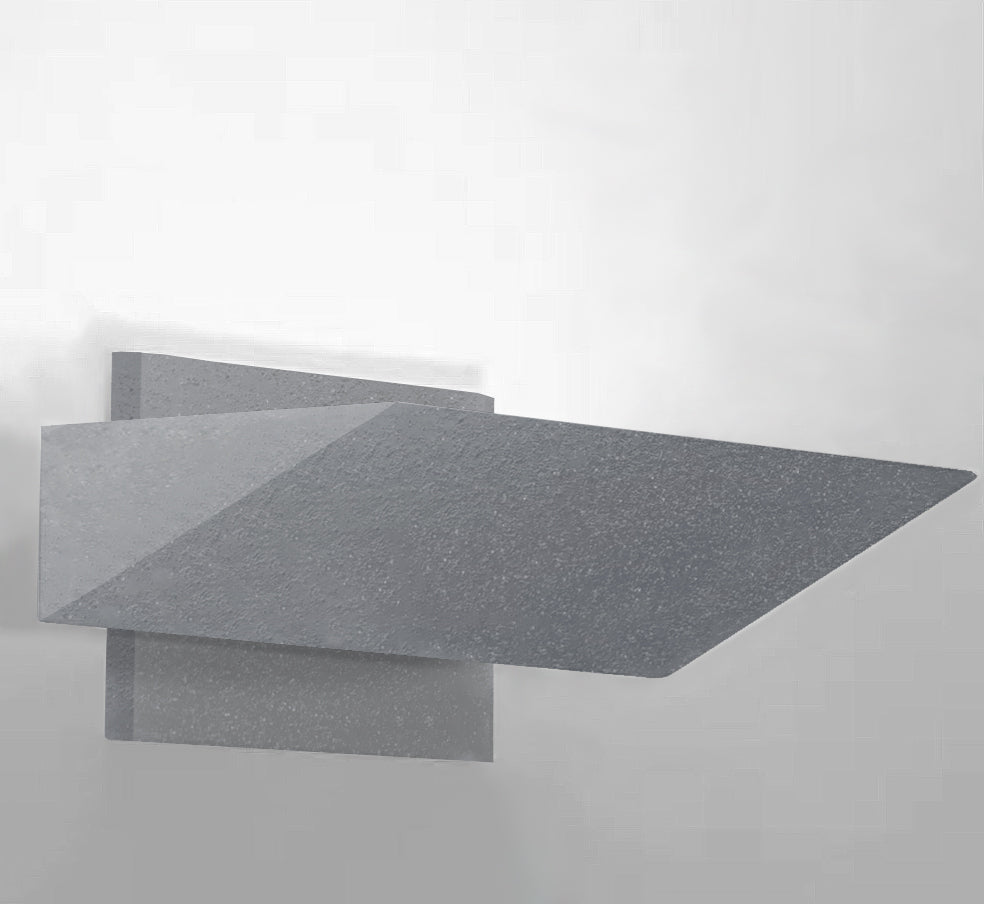

• Double WedgeLens LED wedge shaped wall sconce with minimalist design mounted on white wall

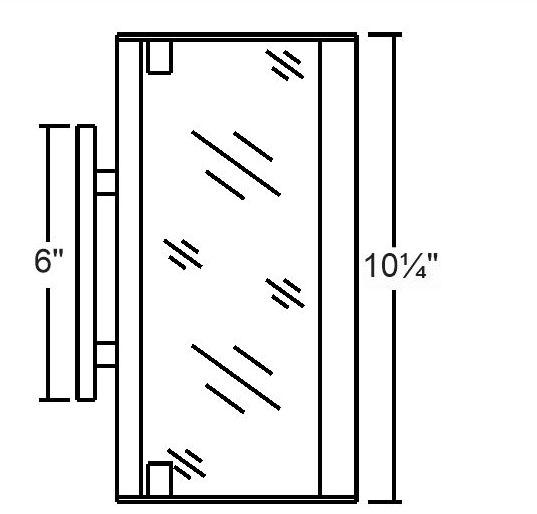

  • Double WedgeLens™ LED wedge shaped wall sconce with dimensions 6" depth and 10 1/4" height diagram

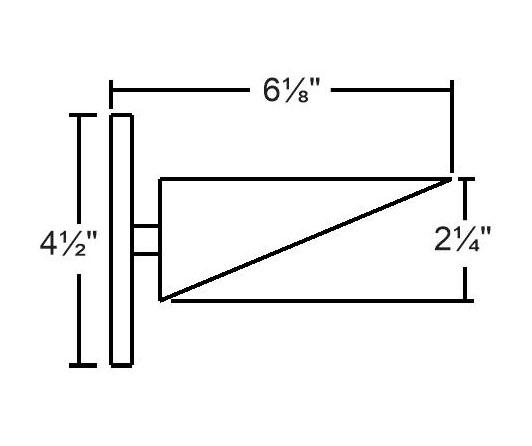

  • Diagram showing dimensions of Belfer's Double WedgeLens™ LED Wedge Shaped Wall Sconce with 6 1/8" length, 4 1/2" height, and 2 1/4" wedge depth

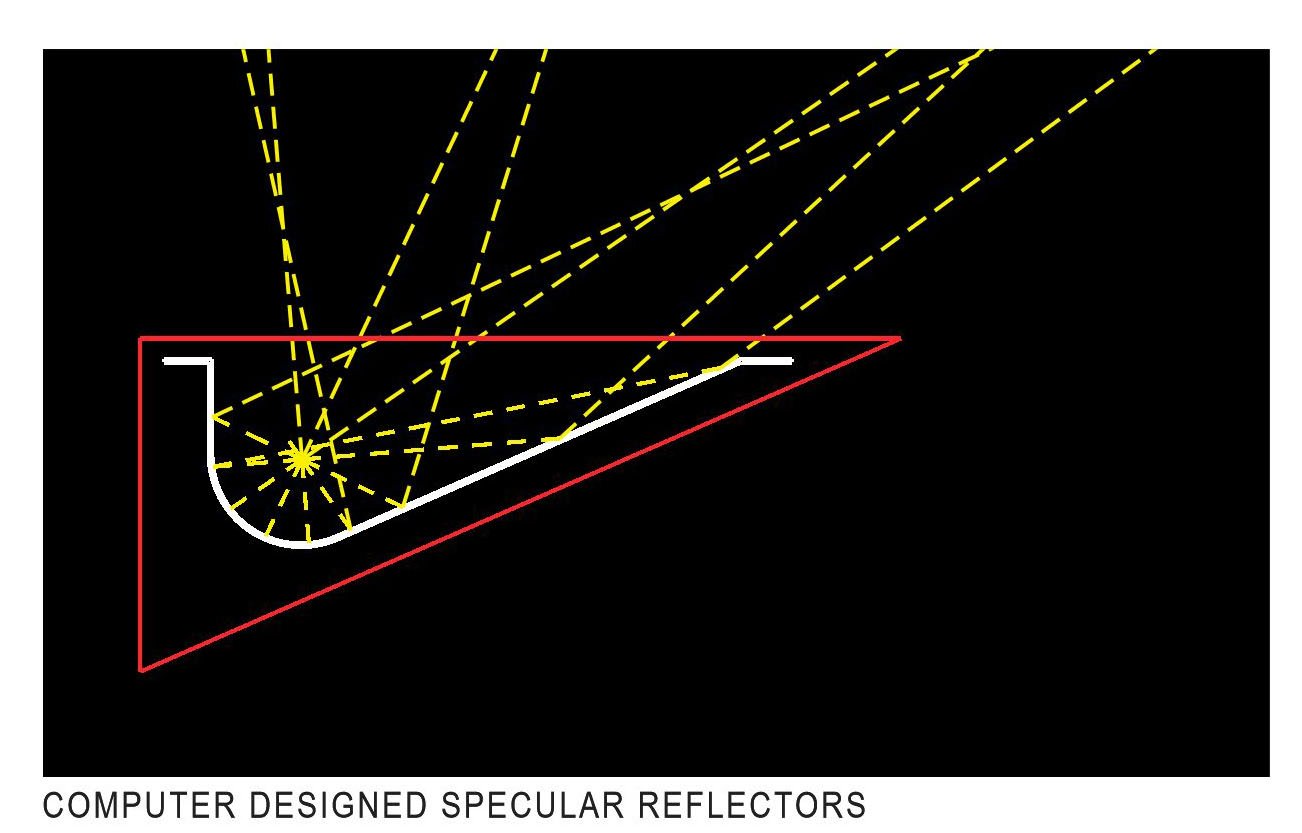

  • Diagram of Double WedgeLens™ LED Wedge Shaped Wall Sconce with specular reflector light paths

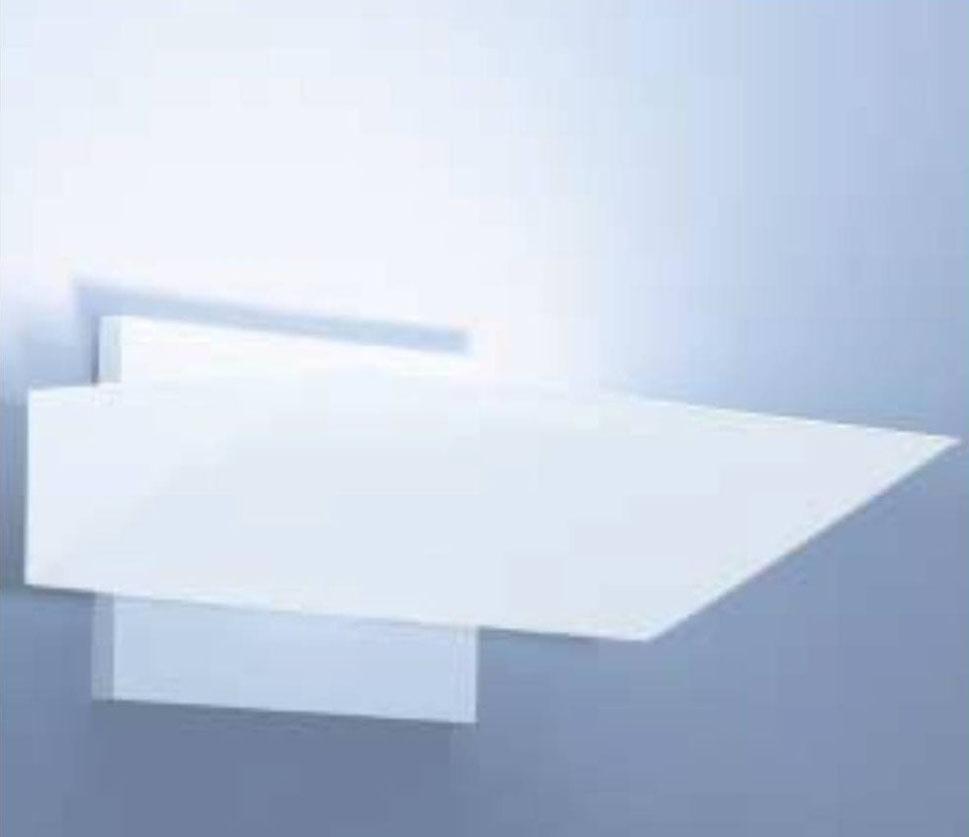

  • Double WedgeLens™ LED wedge shaped modern white wall sconce by Belfer with sleek architectural design and energy-efficient lighting
  • Double WedgeLens™ LED Wedge Shaped Wall Sconce color finish options including white, black, oil rubbed bronze, and titanium powder coat
1 6

Belfer

Double WedgeLens™ LED Wedge Shaped Wall Sconce WS7230LED ELV1 | Belfer

Double WedgeLens™ LED Wedge Shaped Wall Sconce WS7230LED ELV1 | Belfer

$976.00 USD
$976.00 USD
Sale Sold out
Shipping calculated at checkout.
KELVIN
Color

The Double WedgeLens™ LED Wedge Shaped Wall Sconce by Belfer (WS7230 LED ELV1) offers advanced LED technology with smooth ELV1 dimming, providing energy-efficient, high-performance illumination for modern spaces. Its clean, architectural design seamlessly integrates into commercial, residential, and hospitality environments, delivering consistent, reliable lighting while maintaining a sleek aesthetic.

Key Features of the Double WedgeLens™ LED Wedge Shaped Wall Sconce

  • Energy-efficient integrated LED light source

  • Smooth ELV1 dimming for precise light control

  • Sleek, minimalist design for architectural integration

  • Durable construction using premium materials

  • Suitable for residential, commercial, hospitality, and gallery spaces

Applications:
Ideal for hallways, bedrooms, living areas, lobbies, theaters, feature walls, and other spaces. Install the Double WedgeLens™ LED Wedge Shaped Wall Sconce where energy-efficient, dimmable lighting enhances architectural integrity and ambiance.

Technical Details

  • Made in the USA
  • Constructed of Formed Steel with Rectangular Backplate
  • 3,900 Lumens, 30 Watts standard
  • 130 Lumens per watt
  • 120V AC ELV LED Dimming Compatible
  • Dimming to 15% standard
    (Dimming to 0% possible with select controls)
  • 2700K or 3000K standard, please contact sales for other options
  • Includes Clear Micro Prismatic Protective Lens

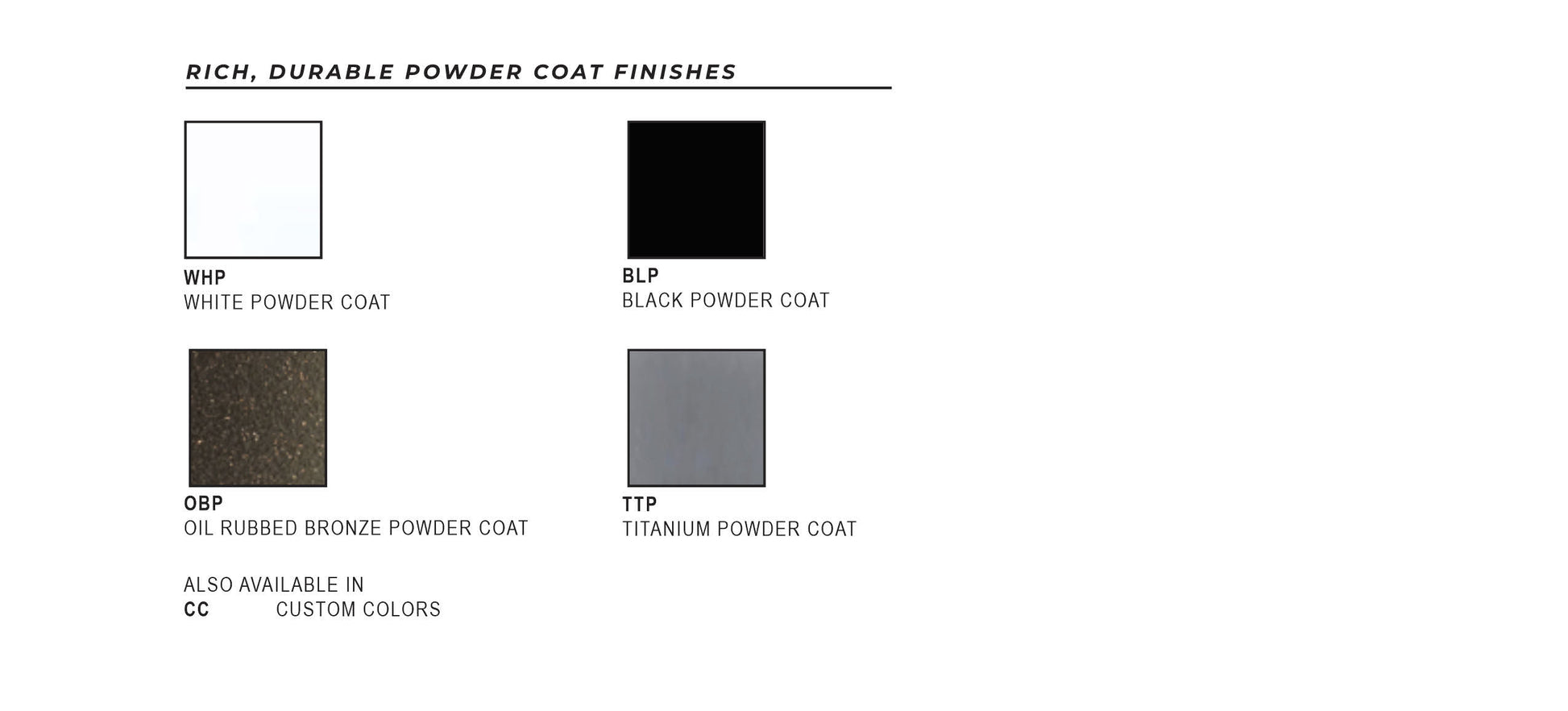

  • Rich Durable Powder Coat Finish in

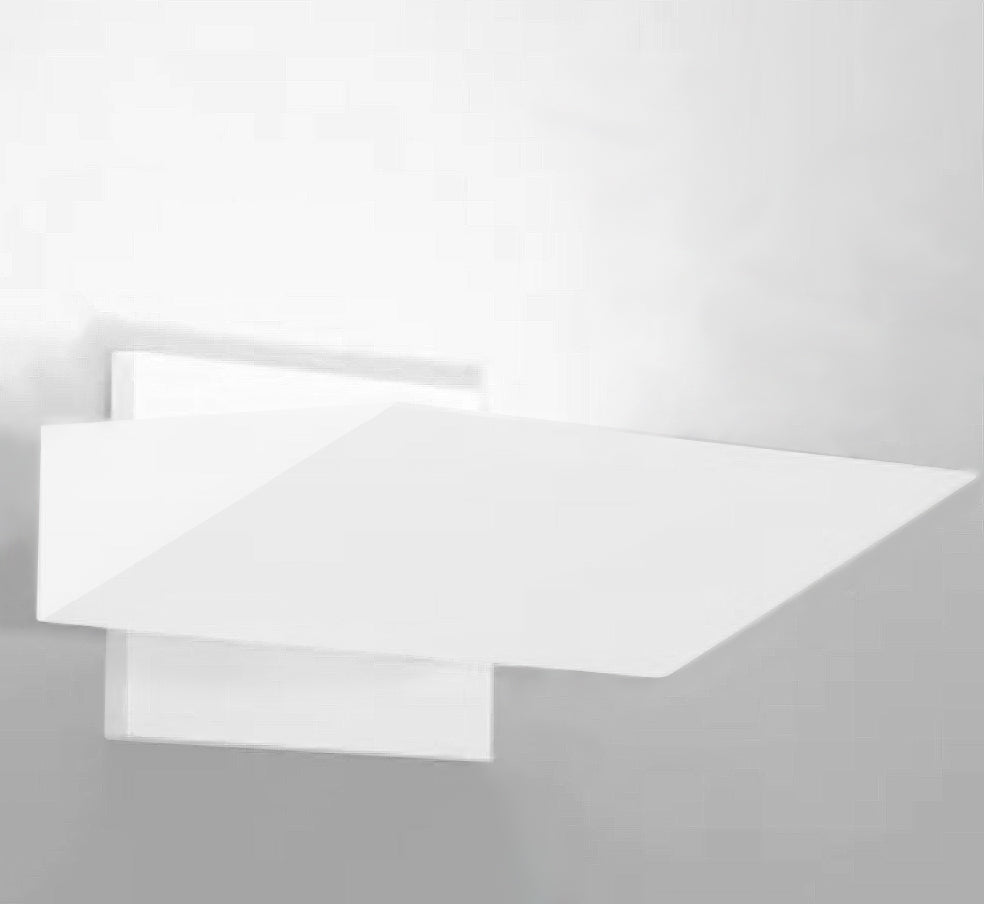

    • White

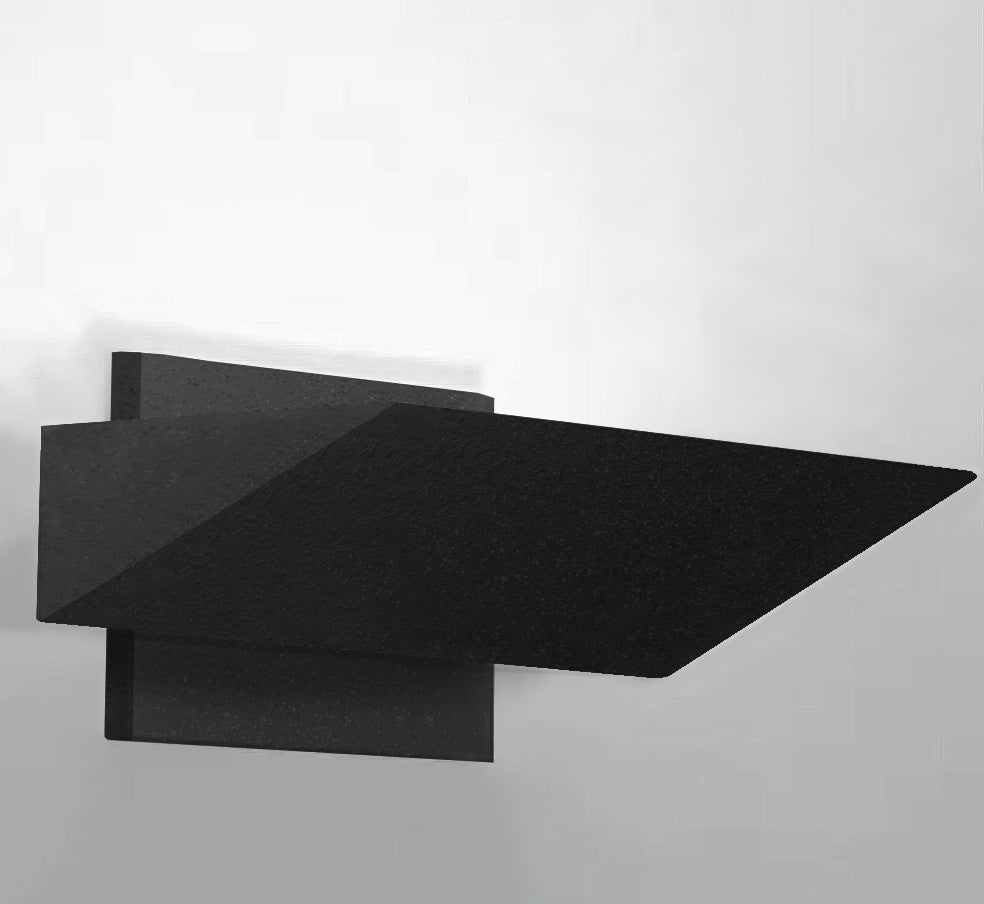

    • Black
    • Titanium

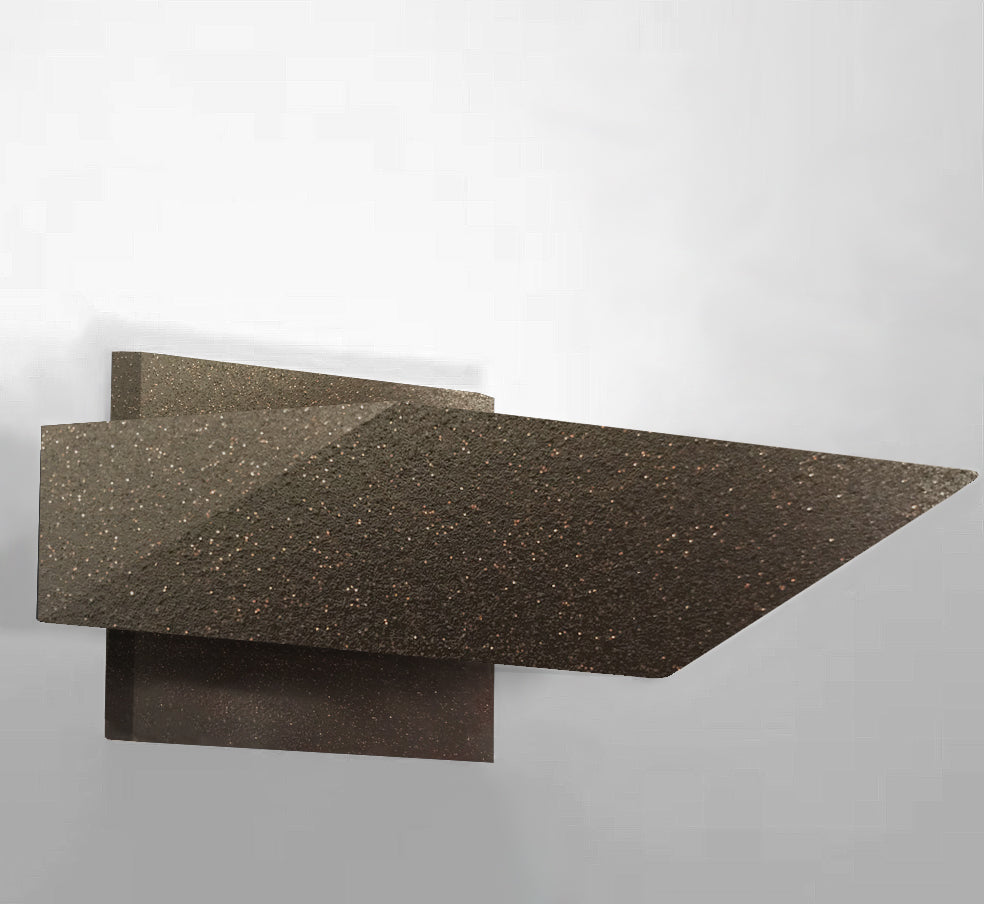

    • Oil Rubbed Bronze
  • Recommended Mounting Box: 4" Octagonal
  • UL and CUL Listed Damp Location



Belfer fixtures are made to order in our New Jersey, USA factory.

Our fixtures are produced to order. Therefore allow 6-8 weeks for delivery.

Members of the Trade please contact our Sales Dept before ordering for additional options and volume discounts.

View full details

Frequently Asked Questions

What is an ideal mounting height?
Although every application is unique, we typically suggest between 18” from the ceiling and 6’-6” from the floor.
What does the sawtooth diffuser accessory do for the wall sconce?
The Sawtooth Diffuser creates a small sawtooth shadow instead of a hot spot on the wall right above the fixture. Some prefer this, but it’s all a preference thing.
What is powder coating?
Powder coating is a type of coating that is applied as a free-flowing, dry powder. Unlike conventional liquid paint which is delivered via an evaporating solvent, powder coating is typically applied electrostatically and then cured under heat or with ultraviolet light. It is usually used to create a hard finish that is tougher than conventional paint. Powder coating is mainly used for coating of metals, such as our lighting fixtures.
What is the Life Expectancy of Halogen vs LED light sources?
Typical light sources lamps have an estimated lifespan ranging from 750 to as long as 100,000 hours, depending on the type of lamp. In addition, the lamp type, the type of use, the brand, and other factors can also affect the lifespan of a lamp. Halogen bulbs just don’t have a very long lifespan. They last about 3,500 hours, which is equivalent to about 1 year. LED light sources have a life expectancy of up to 50,000 hours, which is equivalent to around 13.5 years with normal use.
What is Color Temperature?
The color temperature (CCT) of a bulb tells you the warmth or coolness of white light. When it comes to color temperature, halogens are fixed at around 3000 degrees Kelvins, a warm yellowish tone similar to that of a 2700K incandescent bulb.
What makes the Double WedgeLens™ LED Wedge Shaped Wall Sconce suitable for modern architectural lighting?
The Double WedgeLens™ LED Wall Sconce features a sleek, minimalist design that seamlessly integrates into architectural spaces, while its high-performance LED technology provides consistent, energy-efficient illumination suitable for modern environments. Its clean lines and durable construction make it an ideal architectural LED wall mount for a variety of spaces.
Can the Double WedgeLens™ LED wall sconce be dimmed for different ambiance settings?
Yes, the Double WedgeLens™ LED wall sconce offers smooth ELV1 dimming, allowing you to precisely control the light levels, including dimming to 15% and, with compatible controls, down to 0%. This provides flexible lighting for creating different ambiance settings.
What are the available finish options and technical specifications of this LED wall sconce?
The sconce is available in finishes such as White, Black, Titanium, and Oil Rubbed Bronze, and features a 3,900 lumen output at 30 Watts, with a color temperature option of 2700K or 3000K. It includes a clear micro prismatic protective lens and is UL and CUL listed for damp locations.
