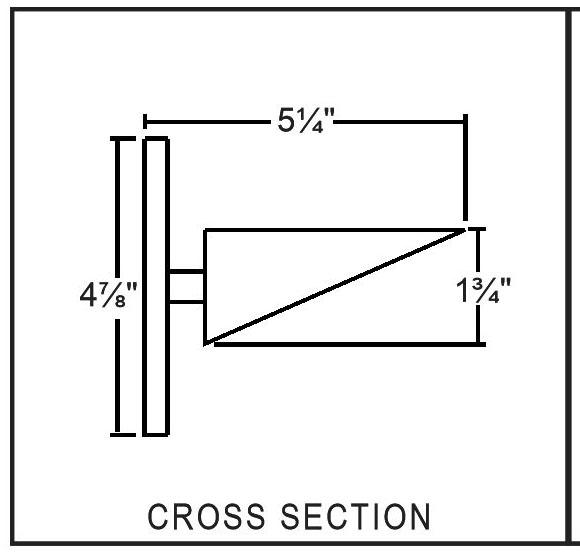

  • Technical drawing cross section showing dimensions of LED wedge shaped wall sconce 0-10 volt with dimming

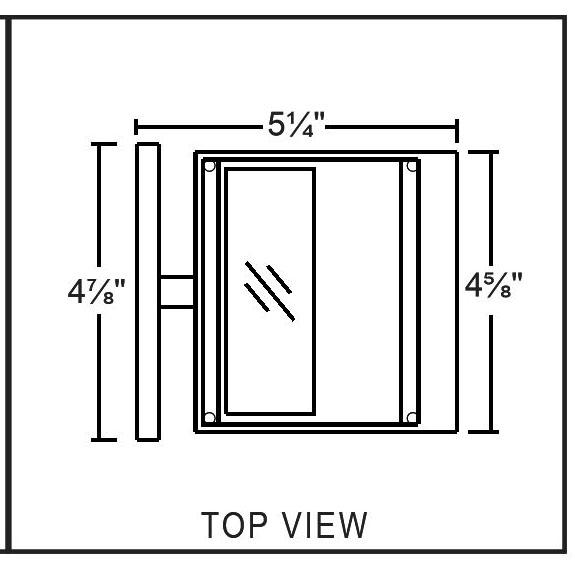

  • Top view technical drawing of LED wedge shaped wall sconce 0-10 volt with dimming showing precise dimensions

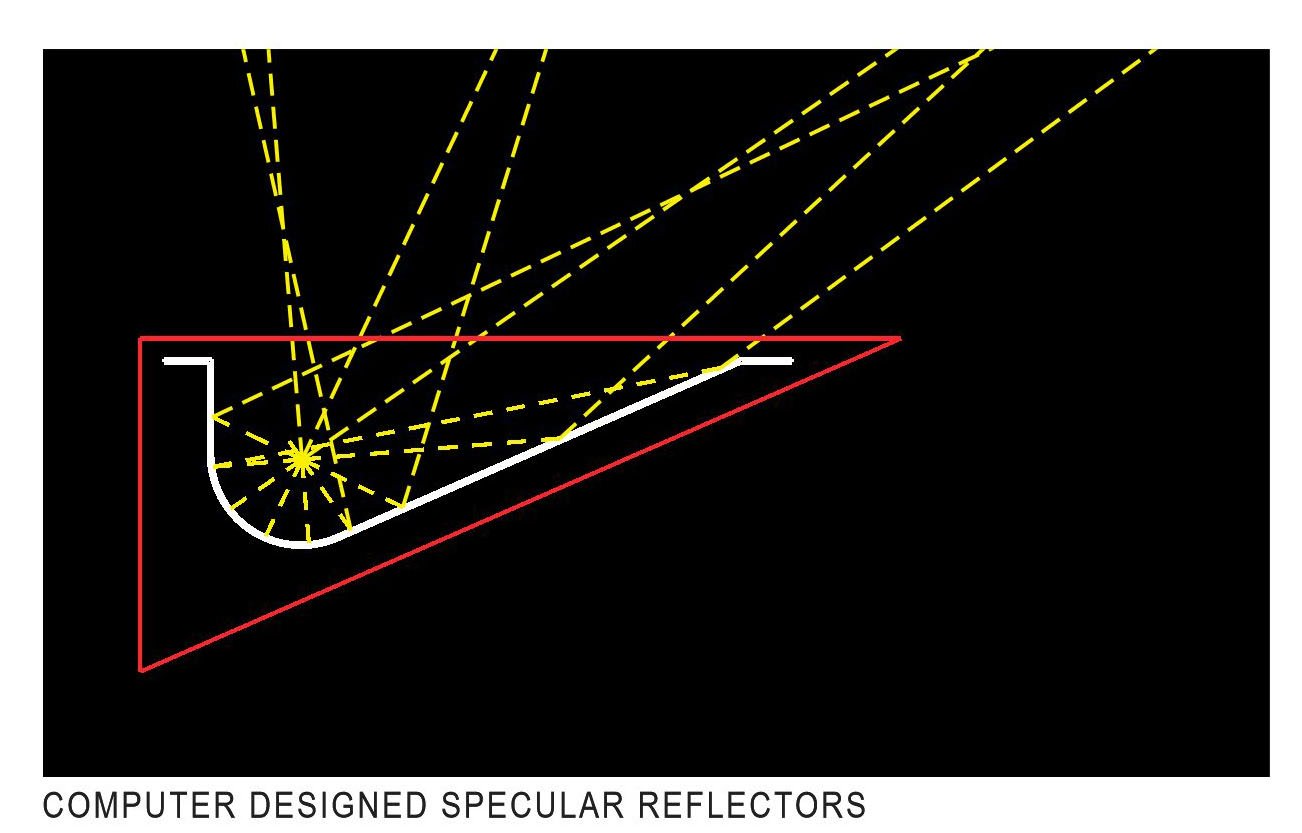

  • Diagram of LED wedge shaped wall sconce with 0-10 volt dimming specular reflectors design

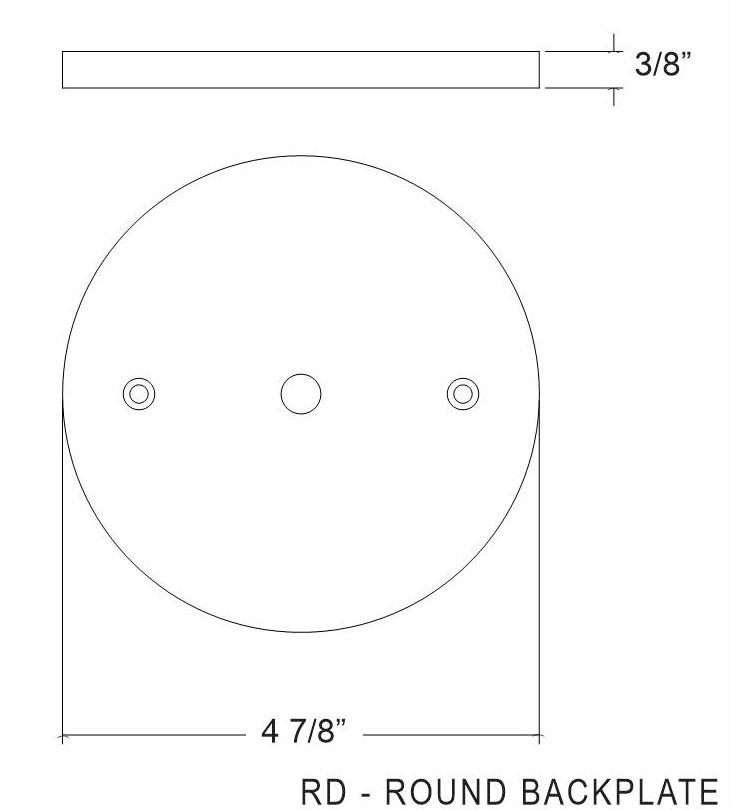

  • Technical drawing of round backplate for LED wedge shaped wall sconce with 0-10 volt dimming showing dimensions 4 7/8 inches diameter and 3/8 inch thickness
  • LED wedge shaped wall sconce with 0-10 volt dimming and cast aluminum construction
  • LED Wedge Shaped Wall Sconce 0-10 Volt with Dimming color finish options including white, black, oil-rubbed bronze, titanium, raw aluminum, and custom colors
1 7

Belfer

LED Wedge Shaped Wall Sconce 0-10 Volt with Dimming | Belfer

LED Wedge Shaped Wall Sconce 0-10 Volt with Dimming | Belfer

$887.00 USD
$887.00 USD
Sale Sold out
Shipping calculated at checkout.
Dimming
KELVIN
Color

The LED Wedge Shaped Wall Sconce 0-10 Volt with Dimming from Belfer Lighting is a professional-grade architectural lighting fixture designed for precise wall illumination. Featuring a wedge profile and integrated LED technology, this sconce provides clean, indirect light suitable for highlighting walls and architectural details in residential, commercial, and hospitality settings. It is designed to be compatible with 0-10V dimming controls, enabling smooth, flicker-free adjustment of light levels for customizable ambiance and energy efficiency. The WS6215LED 0-10 volt fixtures are compatible with voltage requirements worldwide.

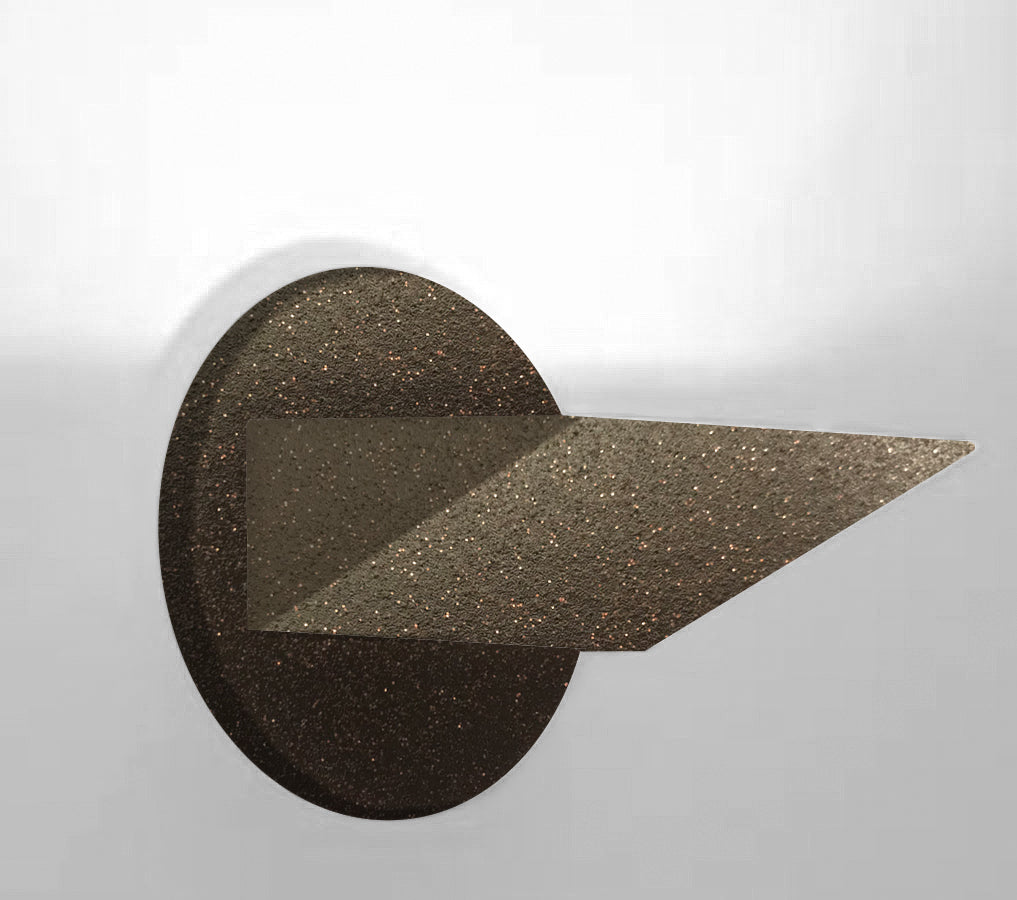

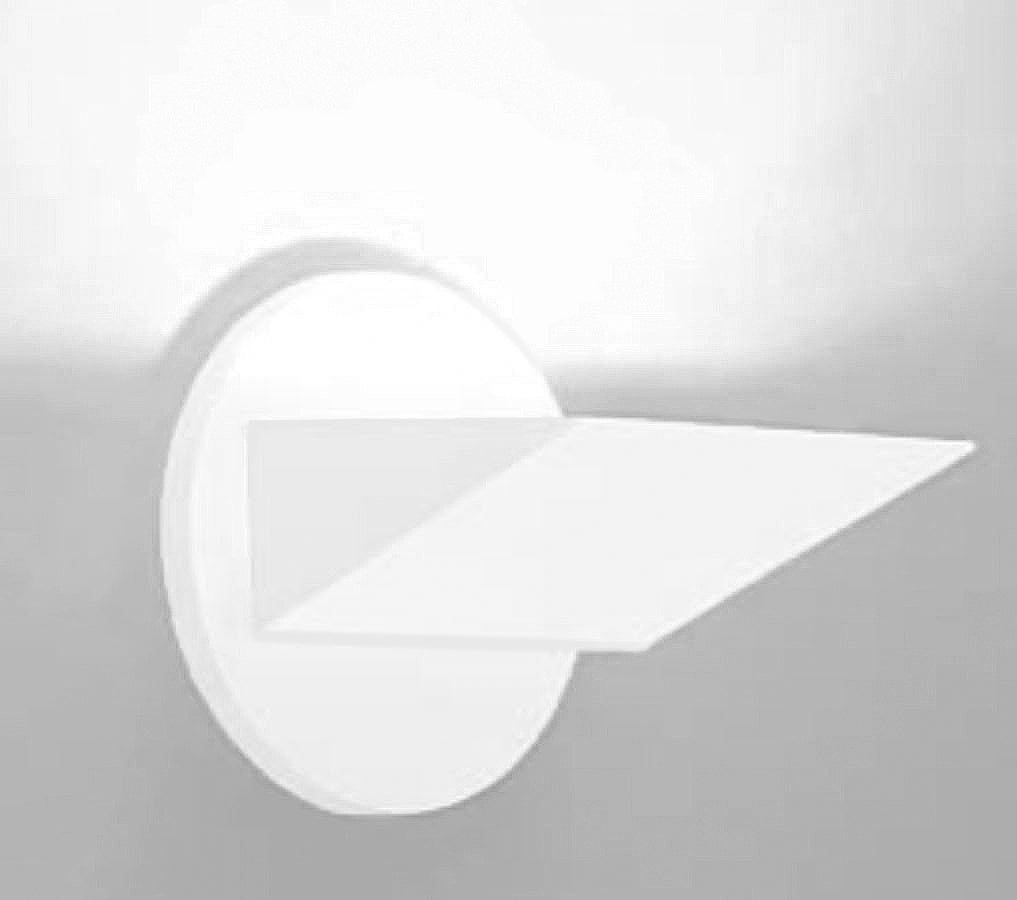

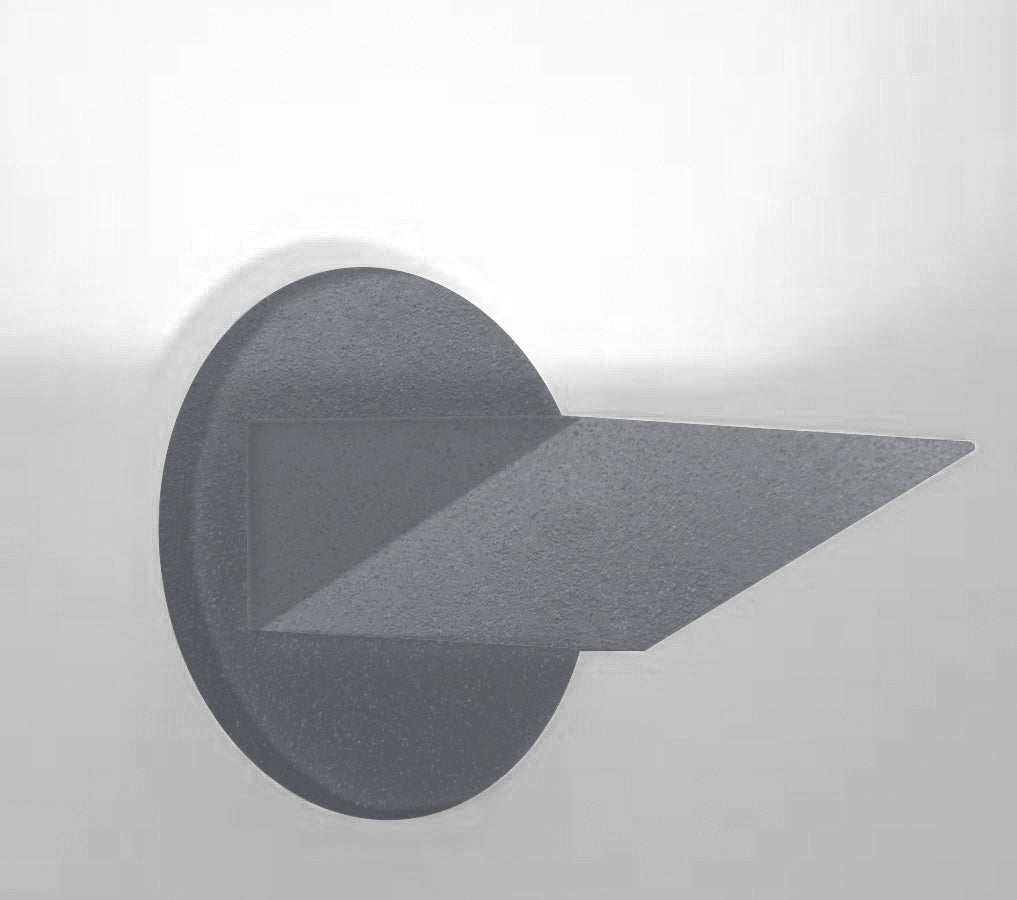

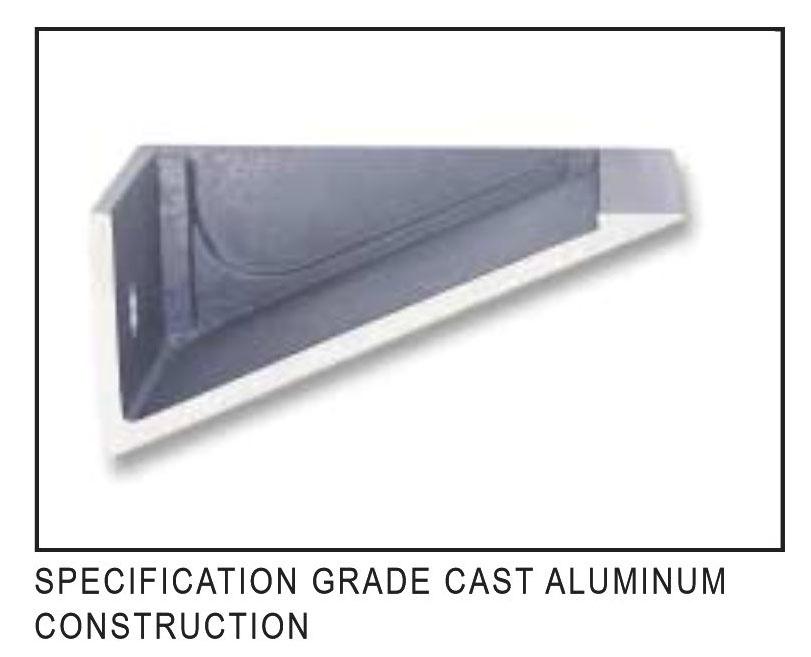

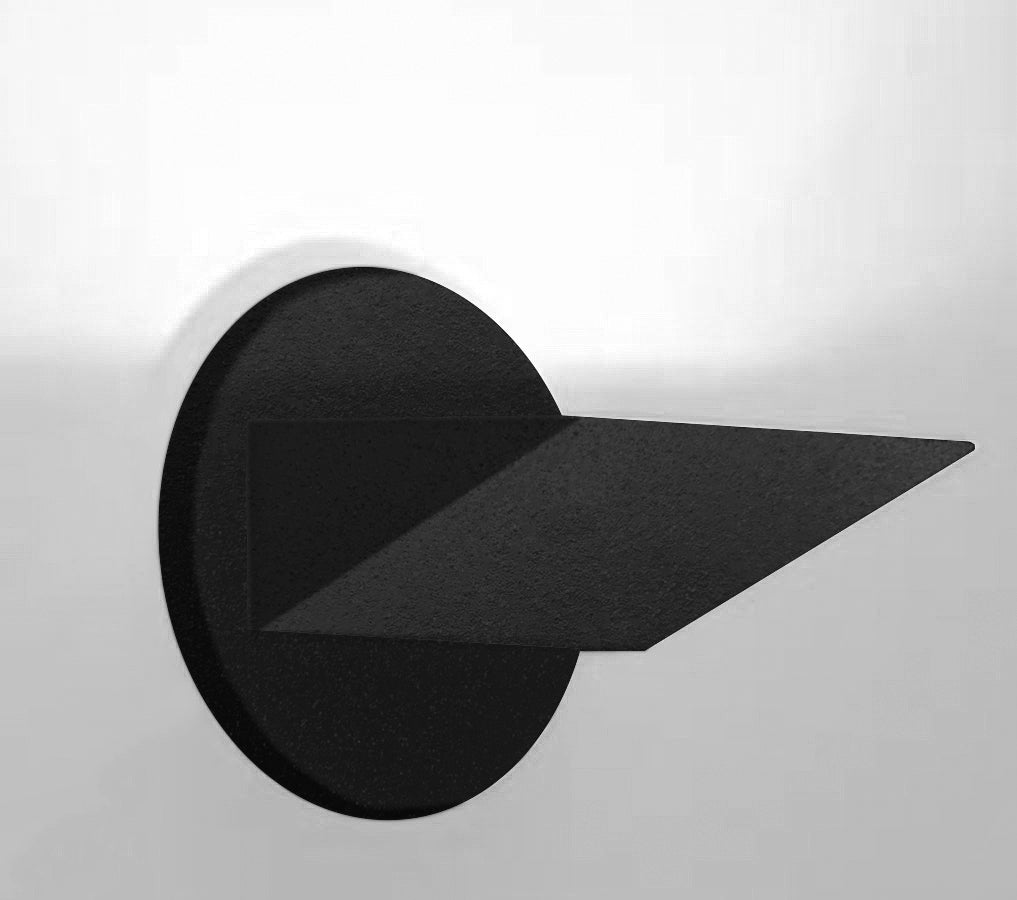

Constructed from cast aluminum with a round back-plate, the fixture offers long-lasting durability and a high-quality finish. The standard color options include white, black, titanium, oil-rubbed bronze, and raw finish. The fixture consumes 26 watts, delivers 2,700 lumens, and offers a luminous efficacy of 105 lumens per watt. It is equipped with a clear micro prismatic protective lens, which enhances light diffusion and protects the LED from dust and moisture.

Dimensions include a standard size compatible with 4-inch octagonal mounting boxes. The fixture measures approximately 12 inches in height, 4 inches in width, and extends about 3 inches from the wall surface. It weighs approximately 4.2 kg (9.3 pounds), suitable for various mounting environments. The light color temperature options are 2700K or 3000K, with additional options available upon request. It is UL and CUL listed for damp locations, making it suitable for both interior and exterior applications where moisture is present.

Key features of this LED wedge shaped wall sconce with 0-10V dimming include a modern wedge profile for architectural appeal, high-quality cast aluminum construction, integrated energy-efficient LED source, and compatibility with 0-10V dimming systems for reliable control. The fixture is ideal for use in hallways, corridors, hotel lobbies, theaters, residential living areas, and office interiors, especially where adjustable lighting is desired within a budget-conscious framework.

The fixture ships with a protective lens included; note that specific mounting hardware and control systems are not included. Belfer fixtures are made to order in the USA, with an estimated delivery time of 4-6 weeks. Members of the trade should contact Belfer sales for volume discounts and custom options. Proper care involves routine cleaning with a damp cloth; the fixture includes a limited warranty against manufacturing defects.

View full details

Frequently Asked Questions

What is an ideal mounting height?
Although every application is unique, we typically suggest between 18” from the ceiling and 6’-6” from the floor.
What does the sawtooth diffuser accessory do for the wall sconce?
The Sawtooth Diffuser creates a small sawtooth shadow instead of a hot spot on the wall right above the fixture. Some prefer this, but it’s all a preference thing.
What is powder coating?
Powder coating is a type of coating that is applied as a free-flowing, dry powder. Unlike conventional liquid paint which is delivered via an evaporating solvent, powder coating is typically applied electrostatically and then cured under heat or with ultraviolet light. It is usually used to create a hard finish that is tougher than conventional paint. Powder coating is mainly used for coating of metals, such as our lighting fixtures.
How does the dimming feature work on the LED Wedge Shaped Wall Sconce 0-10 Volt with Dimming?
The LED Wedge Shaped Wall Sconce 0-10 Volt with Dimming is compatible with 0-10V dimming controls, allowing smooth and flicker-free adjustment of light levels to customize ambiance and improve energy efficiency. Proper dimming control systems ensure reliable operation and seamless lighting transitions.
Is the LED Wedge Shaped Wall Sconce suitable for outdoor use and damp environments?
Yes, this fixture is UL and CUL listed for damp locations, making it suitable for both indoor and covered outdoor settings where moisture may be present, such as hallways, exterior walls, bathrooms, spas, pool surrounds, and other environments where moisture exposure may occur. This fixture is not approved for uncovered outdoor installation with direct contact with rain or water. Proper mounting and protective measures should be followed for outdoor installations.
What are the available color temperature options for this LED wall sconce, and can they be customized?
The standard color temperature options for this LED wall sconce are 2700K and 3000K, with additional choices available upon request. Customization of color temperature allows for tailored lighting designs to suit specific aesthetic or functional needs.
What is the Belfer WS-6215 LED Wall Sconce?
The WS-6215 LED Wedge™ Wall Sconce is an architectural wall sconce from Belfer Lighting featuring a sleek, modern wedge profile with integrated energy-efficient LED technology. It delivers smooth, indirect illumination that highlights walls and architectural details, and is designed for residential, commercial, and hospitality applications.
Can the WS-6215 be installed in countries outside the United States?
Yes — absolutely. Because the WS-6215 accepts 120V to 277V AC, it is fully compatible with the mains voltages used in virtually every country worldwide. Whether your project is in North America (120V), Europe (230V), the UK (230V), Australia (230V), Asia (220–240V), the Middle East (220–240V), or any other region, the WS-6215 will operate correctly without any voltage conversion or modification.
Does the fixture need to be rewired or reconfigured for different countries?
No. The integrated LED driver within the WS-6215 is designed to accept any input voltage between 120V and 277V automatically. Electricians simply connect it to the local mains supply following standard local wiring codes — no internal adjustments, jumper changes, or voltage-tap selections are needed.
Does the 0-10V dimming control signal change between countries?
No. The 0-10V dimming signal is a low-voltage DC control signal — it is completely independent of the AC mains supply voltage and operates identically in every country. Whether the fixture is powered from 120V in the U.S. or 230V in Germany, the dimming behavior and control wiring remain exactly the same.
What dimmer or controller do I need?
The WS-6215 requires a 0-10V compatible dimmer or lighting controller — separate from the main AC power switch. Any standard 0-10V dimmer (also labeled "0–10V" or "low-voltage dimming controller") from a reputable manufacturer is compatible. Your electrician will run a separate low-voltage control wire pair (typically purple + and gray −) alongside the main power wiring to the fixture.
Will the fixture turn off completely when the dimmer is set to zero?
At 0V the fixture dims to its minimum output level but does not fully switch off. To completely turn the WS-6215 off, the AC mains power to the fixture must be switched off — either via a wall switch or through a relay integrated into your control system. This is standard behavior for all 0-10V dimming fixtures.
